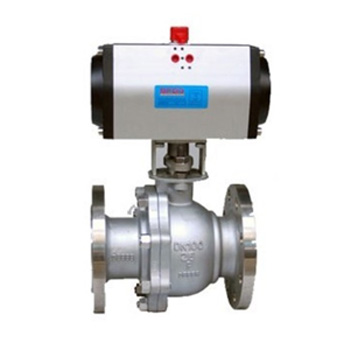

Q641F氣動球閥

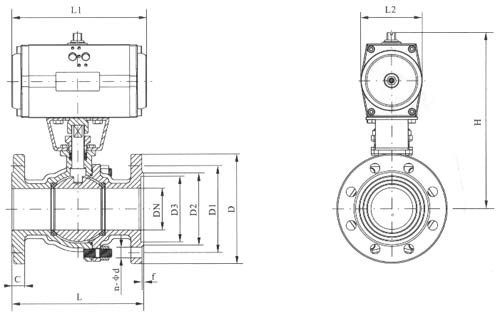

氣動球閥主要外形及連接尺寸 Q641F
氣動球閥壓力為1.6MPa尺寸數據
DN |
外形尺寸 |
連接尺寸 | ||||||||
|
L |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-φd | |
|
15 |
130 |
140/178 |
62/75 |
185/191 |
95 |
65 |
46 |
14 |
2 |
4-φ14 |
|
20 |
130 |
140/178 |
62/75 |
191/197 |
105 |
75 |
56 |
16 |
2 |
4-φ14 |
|
25 |
140 |
140/214 |
62/91 |
193/227 |
115 |
85 |
65 |
16 |
2 |
4-φ14 |
|
32 |
165 |
164/214 |
75/91 |
212/240 |
140 |
100 |
76 |
18 |
3 |
4-φ18 |
|
40 |
165 |
164/246 |
75/101 |
217/255 |
150 |
110 |
81 |
18 |
3 |
4-φ18 |
|
50 |
203 |
190/295 |
91/112 |
260/286 |
165 |
125 |
99 |
20 |
3 |
4-φ18 |
|
65 |
222 |
210/295 |
101/112 |
293/309 |
185 |
145 |
118 |
20 |
3 |
4-φ18 |
|
80 |
241 |
247/395 |
112/139 |
323/349 |
200 |
160 |
132 |
20 |
3 |
8-φ18 |
|
100 |
305 |
276/478 |
127/176 |
382/438 |
220 |
180 |
156 |
22 |
3 |
8-φ18 |
|
125 |
356 |
348/562 |
159/206 |
468/534 |
250 |
210 |
184 |
22 |
3 |
8-φ18 |
|
150 |
394 |
378/724 |
176/228 |
510/582 |
285 |
240 |
211 |
24 |
3 |
8-φ22 |
|
200 |
457 |
524/928 |
228/275 |
655/702 |
340 |
295 |
266 |
24 |
3 |
12-φ22 |
氣動球閥壓力為2.5MPa尺寸數據
DN |
外形尺寸 |
連接尺寸 | ||||||||
|
L |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-φd | |
|
15 |
140 |
140/178 |
62/75 |
185/191 |
95 |
65 |
46 |
14 |
2 |
4-φ14 |
|
20 |
152 |
140/178 |
62/75 |
191/197 |
105 |
75 |
56 |
16 |
2 |
4-φ14 |
|
25 |
165 |
164/214 |
75/91 |
199/227 |
115 |
85 |
65 |
16 |
3 |
4-φ14 |
|
32 |
178 |
164/246 |
75/101 |
212/250 |
140 |
100 |
76 |
18 |
3 |
4-φ18 |
|
40 |
190 |
190/246 |
91/101 |
245/255 |
150 |
110 |
84 |
18 |
3 |
4-φ18 |
|
50 |
216 |
210/295 |
101/112 |
270/286 |
165 |
125 |
99 |
20 |
3 |
4-φ18 |
|
65 |
241 |
247/340 |
112/112 |
309/330 |
185 |
145 |
118 |
22 |
3 |
8-φ18 |
|
80 |
283 |
276/395 |
127/139 |
344/349 |
200 |
160 |
132 |
24 |
3 |
8-φ18 |
|
100 |
305 |
348/478 |
159/176 |
421/438 |
235 |
190 |
156 |
24 |
3 |
8-φ22 |
|
125 |
381 |
378/562 |
176/206 |
485/534 |
270 |
220 |
184 |
26 |
3 |
8-φ26 |
|
150 |
403 |
432/724 |
206/228 |
559/582 |
300 |
250 |
211 |
28 |
3 |
8-φ26 |
|
200 |
502 |
524/928 |
228/275 |
655/702 |
360 |
310 |
274 |
30 |
3 |
12-φ26 |
氣動球閥壓力為4.0MPa尺寸數據
DN |
外形尺寸 |
連接尺寸 | ||||||||
|
L |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-φd | |
|
15 |
140 |
140/178 |
62/75 |
185/191 |
95 |
65 |
46 |
14 |
|
4-φ14 |
|
20 |
152 |
164/214 |
75/91 |
197/225 |
105 |
75 |
56 |
16 |
|
4-φ14 |
|
25 |
165 |
164/214 |
75/91 |
199/227 |
115 |
85 |
65 |
16 |
|
4-φ14 |
|
32 |
178 |
190/295 |
91/112 |
240/266 |
140 |
100 |
76 |
18 |
|
4-φ18 |
|
40 |
190 |
210/295 |
101/112 |
255/271 |
150 |
110 |
84 |
18 |
|
4-φ18 |
|
50 |
216 |
247/340 |
112/127 |
286/307 |
165 |
125 |
99 |
20 |
|
4-φ18 |
|
65 |
241 |
276/398 |
127/139 |
330/335 |
185 |
145 |
118 |
22 |
|
8-φ18 |
|
80 |
283 |
308/438 |
139/159 |
349/383 |
200 |
160 |
132 |
24 |
|
8-φ18 |
|
100 |
305 |
348/562 |
159/206 |
421/487 |
235 |
190 |
156 |
24 |
|
8-φ22 |
|
125 |
381 |
432/724 |
176/228 |
485/557 |
270 |
220 |
184 |
26 |
|
8-φ26 |
|
150 |
403 |
524/928 |
228/275 |
582/629 |
300 |
250 |
211 |
28 |
|
8-φ26 |
|
200 |
502 |
648/1033 |
275/324 |
702/750 |
375 |
320 |
284 |
34 |
|
12-φ30 |
ANSI標準 美標氣動球閥 Q641 壓力CLASS150、300、400
設計依據 Design reference |
API、ANSI標準 | |
|
設計標準 |
API 6D、ANSI B16.34 | |
|
結構長度 |
對夾連接 |
API 6D、ANSI B16.10 |
|
連接法蘭尺寸 |
ANSI B16.5 | |
|
試驗和檢驗 |
API 6D、API598 | |
主要零件材質表
序號 NO |
零件名稱 |
材 質 | ||
|
C |
P |
R | ||
|
1 |
右閥體 |
A216-WCB |
A351-CF8 |
A351-CF8M |
|
2 |
螺母 |
A194-2H |
A276-304 |
A276-316 |
|
3 |
墊片 |
PTFE | ||
|
4 |
螺柱 |
A193-B7 |
A276-304 |
A276-316 |
|
5 |
閥體 |
A216-WCB |
A315-CF8 |
A351-CF8M |
|
6 |
閥座 |
PTFE | ||
|
7 |
球體 |
A182-F304 |
A182-F304 |
A182-F316 |
|
8 |
閥桿 |
A276-410 |
A276-304 |
A276-316 |
|
9 |
墊片 |
PTFE | ||
|
10 |
填料 | |||
|
11 |
襯套 | |||
|
12 |
壓蓋 |
A216-WCB |
A351-CF8 |
A351-CF8M |
|
13 |
螺栓 |
A194-2H |
A276-304 |
A276-304 |
|
14 |
螺栓 | |||
|
15 |
連接支架 |
A351-CF8 |
|
|
|
16 |
螺栓 |
A194-2H |
A276-304 |
A276-304 |
|
17 |
連接套 |
A351-CF8 | ||
